Rotary
Rotary Parking
A continuous vertical carousel. Very small footprint, quick to install, typically 8 to 16 bays per unit.
₹3.00–4.00
Lakh per bay
8–16
Levels
Independent
Retrieval

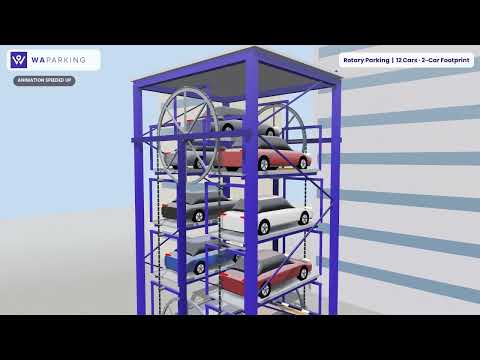

See it in motion
See how Rotary Parking works in a real parking application.
What the site needs
| Minimum headroom | 4000 mm |
| Minimum pit depth | 1500 mm |
| Platform size | 5300 × 2400 mm |
| Bay pitch | 2700 mm |
| Maximum vehicle weight | 2300 kg |
| Suits retrofit | New construction preferred |
Indicative. Final dimensions depend on the vehicle profile, the structural grid and the local fire requirement.
Rotary parking: questions we are asked
How much does Rotary Parking cost in India?
Indicative pricing for Rotary Parking is ₹3–4 lakh per car bay. The final figure depends on the number of levels, the structure, the vehicle profile and the site; a free parking yield audit gives a site-specific estimate.
Is Rotary Parking dependent or independent?
Rotary Parking is an independent system: any car can be retrieved without moving another, so it suits visitor, office and commercial parking.
How many levels can Rotary Parking have?
Rotary Parking is typically configured between 8 and 16 levels, depending on the headroom available and the number of cars required.
Can Rotary Parking be added to an existing building?
Rotary Parking is best planned with new construction, because it needs a dedicated structure, pit or shaft. In an existing building it is possible only where the structure allows.
Does Rotary Parking count towards the parking required by building rules?
In most Indian cities mechanical parking counts towards the required parking, but each authority sets its own conditions. Check the city page in the WAParking Compliance Atlas for the clause that applies to your plot.
Is mechanical parking allowed in your city?
Check the parking requirement and the mechanical-parking clause before you design.
Will it fit your plot?
Send the dimensions and available headroom. Free study, seventy-two hours.
Request A Free Yield Audit
